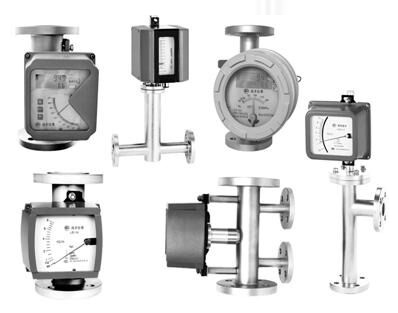

Metal Tube Flow Meter

[Summary]
 The  standard LZ  series metal pipe float flowmeters are composed of one measuring  tube and on side  indicator.The site indicator can be installed also with additional  electric  devices, suitable for liquid and gas measurement.
 The flowmeter adopts  to variable  area measuring principle. The measuring device is  composed of  one taper measuring tube and floater. The floater can move freely up  and down in  the taper measuring pipe to change the flow area in the pipe.When  the flow  changes, the vertical position of the floater inside the measuring pipe  changes  correspondingly.Through magnetic transmitting system, the position of  the floater  is transmitted to the dial scale of the indicator to indicate the flow.
 In M6、M8、 M9 indicator, the follow-up magnet movement is transmitted directly
 to the dial scale.In M7 indicator, when the  follow-up magnet rotates, the needle
 driven  by the cam plate indicates linearly the flow.
 [Features]

1. All metal construction, suitable use for high  temperature,high pressure and strong corrosive medium.

2. Short stroke、compact structure.

3. Low pressure  loss design.

4. New style magnetic coupling structure ensures that the  signal transmission is more stable.

5. Magnetic  filter can be added as customer requirement.

6. Thermal  insulation or tracing heat jacket.

7. Used in the gas and liquid measurement in all industries. The measurment parts can adopt different   materials to be  suitable  for   different medium.

8. Intelligent  dual-line LCD display,on-site instant/cumulative flow display and back light as  options.

9. Two-wire  system,lithium battery,DC24V power supply.

10. With data  recovery、data backup  and power fail protection functions.
