Summary:

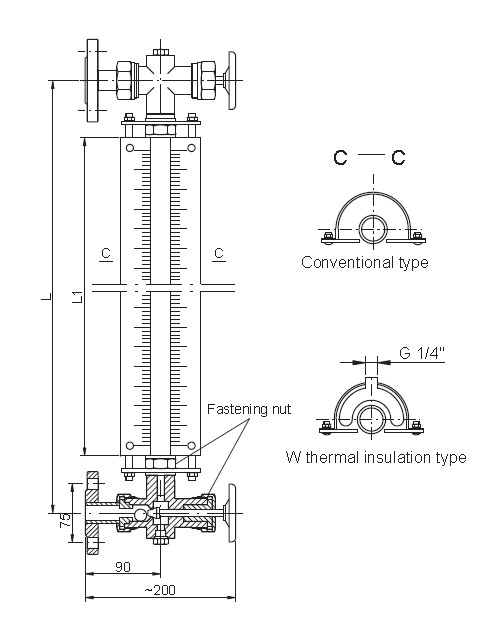

HG5 ordinary glass tube level meter is mainly suitable for indicating directly the level height of media in various vessels,such as jar、tower、trough、tank etc.It's featured with simple structure and convenient service. There are safety steel balls installed in the upper and lower valve of the instrument,when the glass breaks accidently, the steel balls under the pressure in the vessel will automatically seal to stop the liquid flowing out.
Technical Parameter:
| Table 1 |
Measuring Range:300~3000mm |
Working Pressure:-0.1~1.6MPa |
Working Temperature:(-20~180)℃ |
Steam jacket pressure:1.0MPa |
Steam jacket connector:G1/2"male thread |
Flow range:flange centre distance L-200mm |
Process Connection:HG20592~20635-97 DN20~DN50 |
Liquid Touching Material:carbon steel;stainless steel,HBG,quartz glass tube |
Steel ball automatic closed pressure:≥0.2MPa |
Drain valve:ball valve,needle valve |
Notes:Other flange standard (e.g. GB、JB/T、HGJ、ANSI、DIN etc.),can be customized in order.
Type Selection:
| HG5- | Ordinary Glass Tube Level Gauge |
| ||||||||
| I | Carbon steel | Body materials | |||||||
II | SS304 | |||||||||
III | SS316,316L | |||||||||
IV | PVC | |||||||||
| - | 06 | Nominal pressure 0.6MPa | Rated pressure | ||||||
| 10 | Nominal pressure 1.0MPa | ||||||||
16 | Nominal pressure 1.6MPa | |||||||||
| - | 20 | Flange diameter DN20 or 3/4" | Process connection | ||||||
| 25 | Flange diameter DN25 or 1" | ||||||||
50 | Flange diameter DN50 or 2" | |||||||||
| FF | Flange seal surface FF | Flange seal surface | |||||||
RF | Flange seal surface RF | |||||||||
M | Flange seal surface M | |||||||||
| - | Measuring range,unit:mm | Measuring Range | |||||||
| W | Steam heating | Heat tracing optional | |||||||
|
| |||||||||
HG5- □ □ □ □ □ □ □ □ |
| |||||||||
Notes:Measuring tube(glass tube) can choose F46.
