Purge Set

■ Summary

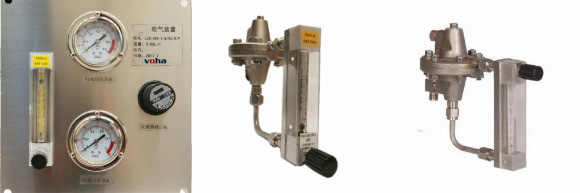

 This  purge sets are composed of metal tube rotameters or glass tube rotameters with  constant flow valves,which can be used for the measurement and keep flow rate  of gases or liquids constantly output.
 Float  flowmeter featured with safety and reliable,measuring precise and steady,so  that this series purge sets keep flow rates output constantly even when the  supply or load pressure changes,which can be widely used for the transmitters  cleaning among the industries of petroleum  processing,chemical,ethylene,fertilizer,steel,chemical fiber and textile and so  on.,also can be used among the processing control of differential pressure  level measurement.
 The  design of this series products can be fulfill of the industrial control  requirements,installation applicable condition also can be fulfill of the  requirements of instrument measuring technology.

 ■ Features

• single-path,two-path,multipath(optional);

• single meter installation,panel  mounting,cabinet installation(optional);

• 1/4〞NPT,swagelok,screw,flange  connection(optional);

• 6mm,8mm,10mm,15mm,25mm pipeline;

• Switch signal output,4-20mA signal  output(optional);

• Metal  structure,simpleness,hardness,beauty;

• Can test processing temperature  below 200℃;

• Can test processing pressure below  6.4MPa;

• Flowrate,pressure(optional)indicate  on-site;

• Adopts to our company LZ series  float flowmeter;

• Precision micro needle valves are  optional,convenient,flexible,applicable for flowrate field adjustment.

■ Type Selection
