CF2001 Digital • Intelligent Direct Connection Pressure Transmitter

 CF 2001 series absolute pressure / pressure
transmitter adopts diffused silicon isolation type
sensor modules that are of high precision and high
stability, converting the absolute pressure of the
tested medium or gauge pressure into standard
4 ~20 mA DC electric signal through highly reliable
amplifying circuit and precision temperature
compensation. Elaborate packaging techniques and
perfect assembling technology ensure excellent
product quality and the most optimal performance
of the product. The product is featured with
complete types and specifications, normalized
interface form, convenient adjustment of zero point
and range adjustment etc, with which customer
demands can be fulfilled to the most.
CF 2001 series absolute pressure / pressure transmitters  are divided into such three types as general
type, intrinsic safety explosion proof type and flame  proof type. Intrinsic safety explosion proof type
and flame proof type products can be widely used in  various tough and dangerous industrial
environments.

*Features
Min. measuring range  over 5 KPa.
Max measuring range 0  ~ 32 MPa
Direct process  connection, no braket installation
needed.
Zero point and range  continuously adjustable
externally.
Lightning proof, RF  interference proof
With local indication
Intrinsic safety  explosion proof or flame proof
Small volume,  good-looking appearance, high
cost efficiency.
High precision, high  stability, and high reliability.
HART communication  protocol for choice.
*Applications
Liquid level measuring  and controlling on
industrial sites
Pressure testing  system in laboratories
Ocean navigation and  ship building
Aviation and aircraft  manufacturing
Air separation plant  and heat power units
Energy source  management system
Liquid level measuring  and water supply system
Hydraulic pneumatic  control system
*Technical indexes
Mediums to be  measured: Various liquids, gases
or steams compatible  with 316L stainless steel

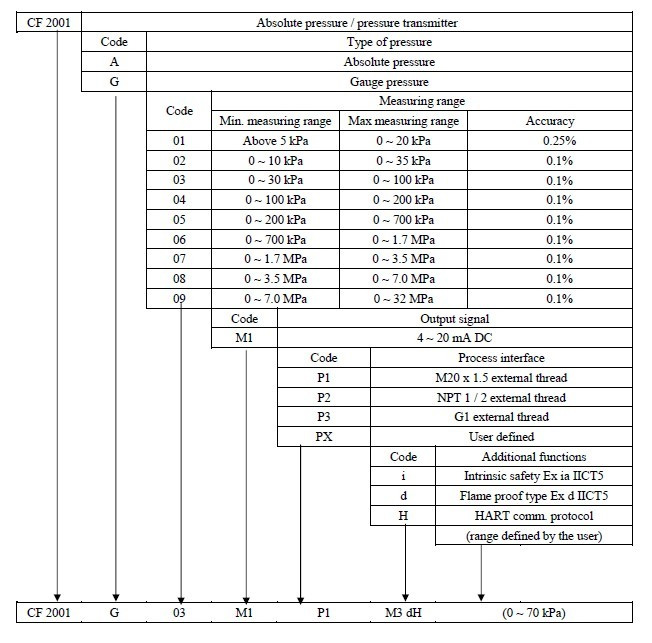

Range: 0 ~ 5KPa to 0 ~  32 MPa (referring to type
selection table)
Over load pressure: 2  times of max range state or
70 MPa (the min.  value)

*Performance indexes
 Accuracy:
 *0.1% (including the  comprehensive error of nonlinearity, repeatability and return error).
 Zero point deviation:
 Positive deviation: 0%  ~ + 80% of max range state; negative deviation: 0% ~ -100% of max
 range state (not exceeding  -100 KPa, absolute pressure products have no negative deviation).
 Range adjustment:
 Adjustable freely  between the min. range and max range state (see type selection table).
 Influence of over  pressure:
 Less than 0.25% of max  range state.
 Influence of power  supply
 Less than 0.01% V of  output range.

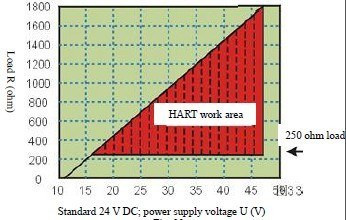

 Load influence:
 Negligible.
 Influence of  temperature:
 *5% of max range state  (temperature range: - 20% ~ + 85%, including total temperature
 influence of zero  point and the range).
 Stability:
 *25% / year of max  range state.

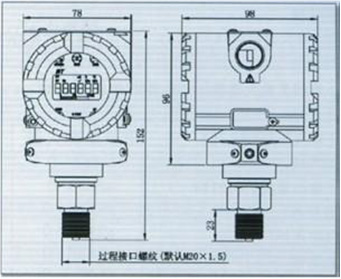

 *Features of  structure:
 Material: 316L  stainless steel diaphragm
 Connection material:  316 stainless steel
 Casing material: cast  aluminum alloy, surface coated with sprayed plastics.
 Process interface: M20  x 1.5, NPT 1 / 2 or G1 external thread (large opening).
 Electrical interface:
 Standard water proof  plug
 NPT 1 / 2 inner thread  sealing union for cables
 Indication meter: M3  digital LCD display meter
 Weight: approx. 1.2  kg.
 Explosion proof mark:  Ex ia II CT5 (intrinsic safety type); E x d II CT5 (flame proof type)
 Overall protection  meeting requirements of IP 67 (meeting applicable parameters)
