Description
BP93420IX pressure transmitter uses HT series piezoresistive silicon oil-filled sensor as the signal measuring element. Signal processing circuit located in the stainless steel housing, can convert sensor signal into standard output signal. All the products through components and semi-finished products test, finished products burn-in screening, are with stable and reliable performance.
Feature
Wide measurement range, full stainless steel，Flush diaphragm.
Various output signal
Scene adjustable
Protection: IP65
Marking:ExiaIICT6;
CE certification Application
Compatible with 316LSS, noncorrosive gases & liquids
Petroleum industry, chemical industry, metallurgy industry, electric power, hydrology etc.Specification
Measurement Range | -0.1．．．0~0.01．．．~100MPa |
Proof pressure | ≤1.5X rated pressure or 110MPa which ever is less |
Pressure type | Gauge, absolute ,sealed gauge |
Accuracy | ±0.25%（Typical） ±0.5%（Max.） |
Long term stability | ±0.1%F.S/年（ Typical ） ±0.2%F.S/year（ Max.） |
Temperature Error- Zero | ±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa） |
Temperature Error -Span | ±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa） |
Operating Temperature Range | -20℃~80℃ |
Storage Temperature Range | -40℃~120℃ |
Power supply | 15～30VDC |
Output signal | 4～20mA 0～10/20mA 0/1～5VDC |
Pressure port | M20×1.5 G1/2 or customize |
Housing material | 1Cr18Ni9Ti stainless steel |
Diaphragm material | 316L |
O-ring | Fluororubber |
Cable | Polyethylene |
Insulation resistance | 100MΩ 100VDC |
Protection | IP65 |

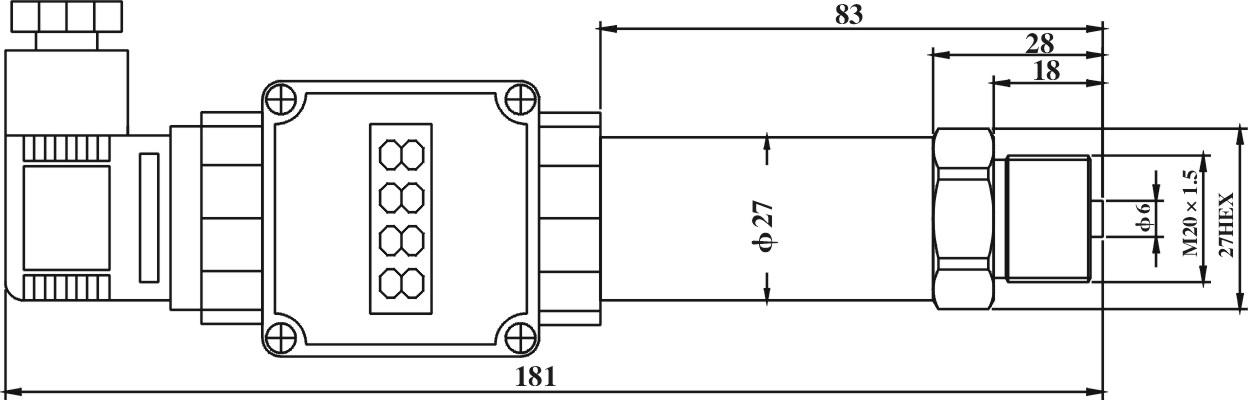

Dimension

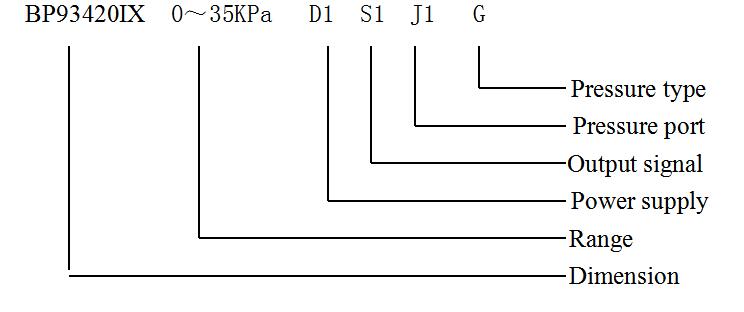

Ordering example
