BP93420IIE/IIIE Pressure Transmitter

Description

BP93420IIE/IIIE pressure transmitter uses HT series piezoresistive silicon oil-filled sensor as the signal measuring element. Signal processing circuit located in the stainless steel housing, can convert sensor signal into standard output signal. All the products through components and semi-finished products test, finished products burn-in screening, are with stable and reliable performance. Have strong anti-interference performance, can working in harsh environment conditions for long term.

Feature

Wide range, cast aluminium & explosion-proof housing, various pressure port

Various output signal, scene adjustable

Multiple protect, strong anti-interference capability.

Marking: ExiaIICT6. Application 

Compatible with 316LSS,noncorrosive gases & liquids.   

Petroleum industry, chemical industry, metallurgy industry, electric power, hydrology etc.

Specification

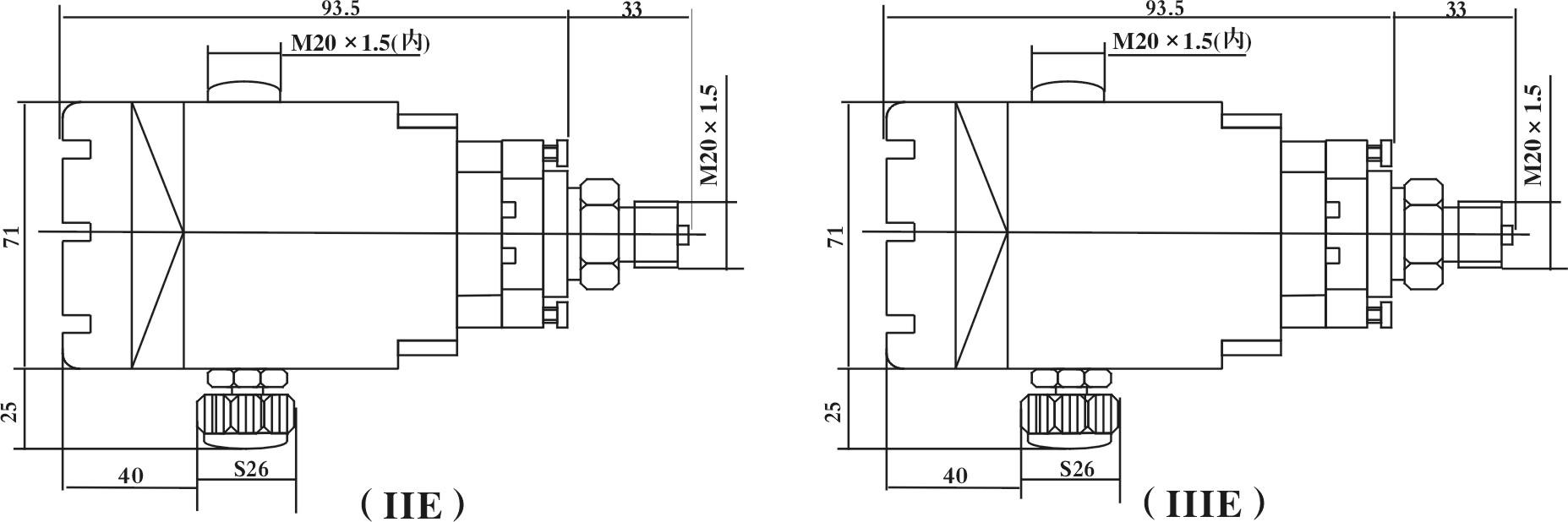

Dimension

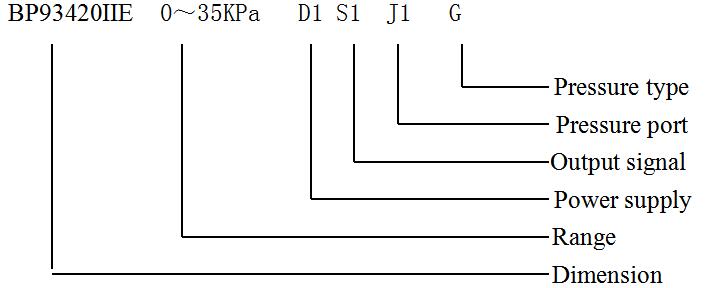

Ordering example

Ordering Information

Ordering note: 1. Media must compatible with wetted part. 2. To ensure the products can working reliable, we suggest that customer install lightning protection device and make sure products & power are earthed. 3. Special requirement ,such as strong shock, moment vibration, strong electromagnetism, radio frequency interference ,please consult us. Warranty: Pressure transmitters have a limited one-year warranty to the original purchaser. Hengtong will replace or repair defective products free of charge. This warranty does not apply to any units have been modified, misused, neglected .
