LZB-TS Series Glass Tube Flowmeter
Summary:
LZB-( )TS series glass tube flowmeter are adopt to pull-rod type for the whole body.Materials of touching media parts are made by plastic(PVC、UPVC、F46 etc.).The rotameter are featured with light weight,nice structure,corrosion resistance and can be used in room temperature,atmospheric pressure,acid occasions places.

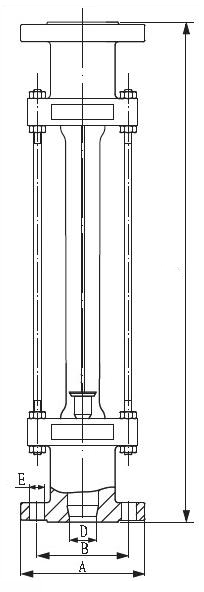

Outline and Installation Size:
Table 1 Unit:mm | ||||||
DN(mm) | A | B | C | D | E | Connection |
15 | Φ95 | Φ65 | 465 | Φ15 | 4-φ14 | Flange |
25 | Φ115 | Φ85 | 465 | Φ25 | 4-φ14 | |
40 | Φ145 | Φ110 | 465 | Φ40 | 4-φ18 | |
50 | Φ160 | Φ125 | 465 | Φ50 | 4-φ18 | |
80 | Φ185 | Φ150 | 480 | Φ80 | 4-φ18 | |
100 | Φ205 | Φ170 | 656 | Φ100 | 4-φ18 | |
Technical Parameter
DN(mm) | Measuring Range | Pressure Loss(Pa) | Max.Pressure(MPa) | Max.Temperature(℃) | Accuracy | |
Water(20℃)L/h | Air(20℃,101325Pa)m3/h | |||||
15 | 10~100 | 0.3~3 | 1100 | 1.0 | 0~50 | 2.5 |
25 | 63~630 | 2~20 | 2800 | 1.0 | ||
40 | 250~2500 | 8~80 | 4000 | 0.9 | ||
50 | 630~6300 | 20~200 | 6500 | 0.7 | ||
80 | 1600~16000 | 80~400 | 8000 | 0.5 | ||
100 | 8000~40000 | 160~600 |
| 0.5 | ||
