LZB-()D series glass tube flow meters |
■ Summary

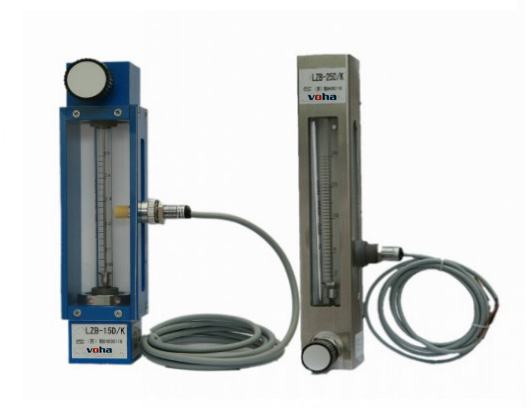

LZB-()D series glass tube flow meter,with introduction of foreign advanced technology,adopt to plate type installation,equip with flow adjustable valve,featured with light structure,nice figure,easy installation.Alarm switch can be added,suitable for the condition of lower working pressure.
■ Technical Parameter
DN(mm) | Model | Flow range(L/min) | Accuracy | Max.temp (℃) | Fluid working pressure(MPa) | |
Water 20℃ | Air 20℃ 101325Pa | |||||
15 | LZB-15D | 0.3~3 | 4~40 | 4 | 120 | ≤0.6 |
20 | LZB-20D | 1~10 | 2~20m3/h | |||
25 | LZB-25D | 0.1~1m3/h | 3~30m3/h | |||
30 | LZB-30D | 0.16~1.6m3/h | 5~50m3/h | |||

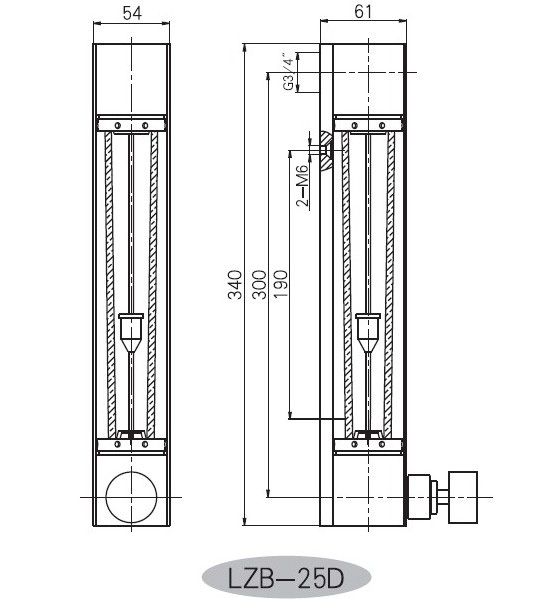

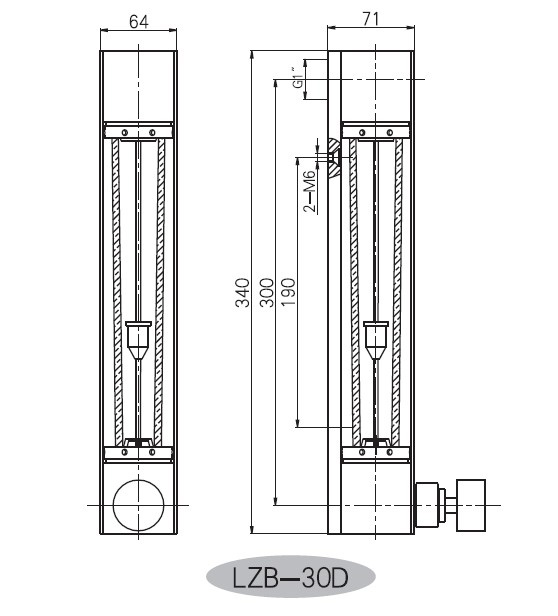

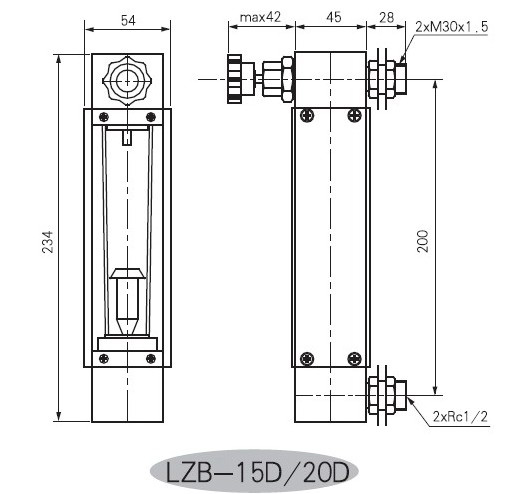

■ Outline and installation dimension Unit:mm
