LZT-()S series plastic flowmeter
Summary:
LZT-()S plastic tube flowmeter is featured with light weight, corrosion resistant, unbreakable,innoxious, tasteless and convenient.It is widely used in chemical industry,light industry,pharmacy,food,environment protection etc.

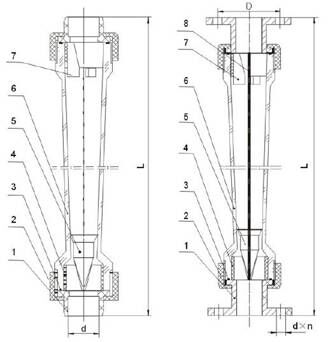

Outline and Installation Size:
Table 1
| Number | Name | Material |
1 | Connection tube | ABS |
2 | Nut | ABS |
3 | O-ring | NBR |
4 | Bottom stop shaft | ABS |
5 | Floater | ABS |
6 | Cone tube | PS |
7 | Top stop shaft | ABS |
8 | Guide rod | 316 |
Dimension(mm):
Table 2
Nominal Dia.(mm) | Long tube size | Short tube size | Flange connection size | |||||||
L | d | L | d | L | D | d×n | ||||
| Sinking insert | Thread | Sinking insert | Thread | Long tube | Short tube |
|
| ||
15 | 280 | Φ20 | G1/2” | 200 | Φ20 | G1/2” | 320 | 240 | 65 | 14×4 |
25 | 380 | Φ32 | G3/4” | 226 | Φ32 | G3/4” | 432 | 278 | 85 | 14×4 |
32 | ---- | ---- | ---- | 288 | Φ40 | G1” | ---- | 351 | 100 | 18×4 |
40 | 417 | Φ50 | G1 1/4” | ---- |
| ---- | 489 | ---- | 110 | 18×4 |
50 | 435 | Φ63 | G1 1/2” | 341 | Φ63 | G1 1/2” | 519 | 435 | 125 | 18×4 |
65 | ---- | ---- | ---- | 430 | Φ75 | G2” | ---- | 522 | 145 | 18×4 |
80 | ---- | ---- | ---- | ---- | ---- | ---- | 540 | 160 | 18×8 | |
100 | ---- | ---- | ---- | ---- | ---- | ---- | 555 | 180 | 18×8 | |
125 | ---- | ---- | ---- | ---- | ---- | ---- | 555 | 210 | 18×8 | |
150 | ---- | ---- | ---- | ---- | ---- | ---- | 555 | 240 | 22×8 | |
Table 3
Model | Measuring range | Medium | Remarks |
LZT-15S06S | 6~60L/h | Water | With Guide Rod |
LZT-15S10S | 10~100L/h | ||
LZT-15S16S | 16-160L/h | ||

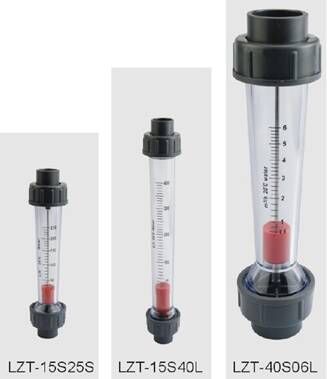

LZT-15S25S | 25-250L/h | ||
LZT-15S40S | 40-400L/h | ||
LZT-15S60S | 60-600L/h | ||
LZT-25S10S | 100~1000L/h | ||
LZT-25S16S | 160~1600L/h | ||
LZT-25S25S | 250~2500L/h | ||
LZT-25S30S | 300~3000L/h | ||
LZT-32S04S | 0.4~4m3/h | ||
LZT-32S06S | 0.6~6m3/h | ||
LZT-50S10S | 1~10m3/h | ||
LZT-50S16S | 1.6~16m3/h | ||
LZT-65S25S | 5~25m3/h | ||
LZT-65S40S | 8~40m3/h | ||
LZT-65S60S | 12~60m3/h | ||
LZT-80S25S/F | 5~25m3/h | Flange connection with guide rod | |
LZT-80S40S/F | 8~40m3/h | ||
LZT-80S60S/F | 12~60m3/h |
Table 4
Model | Measuring range | Medium | Remarks | |
LZT-15S06L | 6-60L/h | Water | Without Guide Rod | |
LZT-15S10L | 10~100L/h | |||
LZT-15S16L | 16~160L/h | |||
LZT-15S25L | 25~250L/h | |||
LZT-15S40L | 40~400L/h | |||
LZT-15S60L | 60~600L/h | |||
LZT-25S06L | 60-600L/h | |||
LZT-25S10L | 100~1000L/h | |||
LZT-25S16L | 160~1600L/h | |||
LZT-25S25L | 250~2500L/h | |||
LZT-25S30L | 300~3000L/h | |||
LZT-40S04L | 0.4~4m3/h | With Guide Rod | ||
LZT-40S06L | 0.6~6m3/h | |||

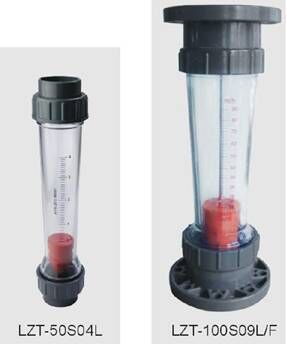

LZT-50S04L | 0.4~4m3/h | Without Guide Rod | ||
LZT-50S06L | 0.6~6m3/h | |||
LZT-50S10L | 1~10m3/h | |||
LZT-50S16L | 1.6~16m3/h | With Guide Rod | ||
LZT-100 | S05L/F | 8~50m3/h | Flange connection with guide rod | |
S06L/F | 12~60m3/h | |||
S09L/F | 14~90m3/h | |||
S12L/F | 18~120m3/h | |||
S15L/F | 18~150m3/h | |||
S18L/F | 22~180m3/h | |||
S20L/F | 25~200m3/h | |||
