Changzhou Voha Instrument Co., Ltd.
LZB-6M/MT O2 series oxygen flowmeter
Summary:
This series flowmeter is mainly made by acrylic glass,widely used for oxygen measuring,control oxygen flow.Featured with nice figure,light weight,unbreakable,long life.
Technical Parameter:
Model | Measuring Range L/min | Connection Type | Accuracy Degree | Working Pressure |
LZB-6M/MTO2 | 1~10 | Hose connection | 5.0 | ≤0.1MPa |
0.5~14 | ||||
0.1~1.5 | ||||
0.2~2 | ||||
0.3~3 | ||||
0.5~5 | ||||
1~10 |

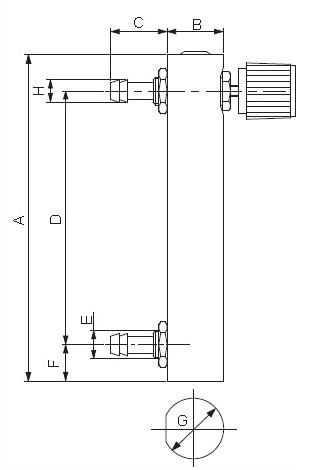

Size(mm) | |||||||
A | B | C | D | E | F | G | H |
106 | 20 | 21 | 80 | M10x1 | 13 | 22 | 8 |
106 | 80 | 13 | 8 | ||||
95 | 70 | 10 | 6 | ||||
95 | 70 | 10 | 6 | ||||
95 | 70 | 10 | 6 | ||||
115 | 90 | 13 | 8 | ||||
115 | 90 | 13 | 8 | ||||
