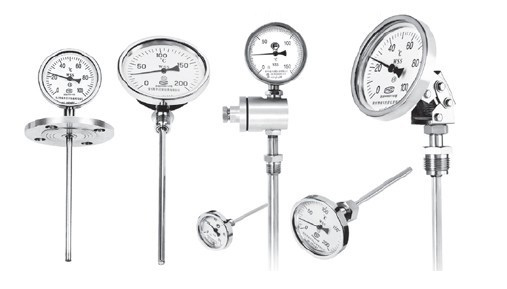

WSS Series bimetallic thermometers

Product specification:  WSS series
 Summary
 The  bimetallic thermometer is a on

 site measurement  instrument suitable
for  measuring middle and high temperature,
and can be  used to measure directly
the  temperature of gasses and
liquids.  Compared with glass thermometer,
it is  featured with no mercury
harmness,  distinct reading, strong and
durable and  other advantages. Our
company  produces multipurpose bimetallic
thermometers.  The types and
models are  complete. The quality is
high and  reliable. It can be used widely
in  industry, agriculture, national defence
and scientific  research etc.

Structure features and working  principle
 Bimetallic  thermometer (hereafter referred to as simply thermometer) is a coiling thermal  bimetal temperature sensor. One end is fixed inside the protective sleeve  (fixed end) and another end (free end) is connected at a fine axle. The axle  end is equipped with a needle. When the temperature changes, the free end of  the temperature sensor rotates, hereupon, the fine axle moves the needle. The  dial plate indicates the temperature change. The steering drive mechanism in  the straight meter moves the needle. The meter housing is made of steel plate,  cast aluminium alloy and stainless steel. For the head of the adjustable angle  thermometer, by means of corrugated pipe, angle machenism and other parts, the  angle can be adjusted freely from the angle type to straight type, or from the  straight type to angle type.
 The  electric contact bimetallic thermometer is added with electrical contacts,  adjusting devices, outlet box etc. When the temperature fluctuates, at the  moment when the needle (moving contact) and the pre-established temperature  control contact (upper limit or lower limit) are connected or disconnected, the  relay or the contactor in the control circuit moves, thereby, realizing  automatic temperature control or producing alarm.

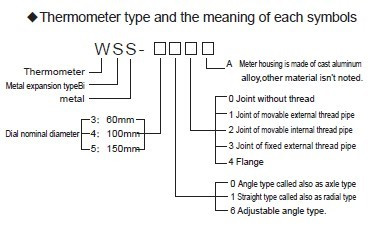

 WSS Series bimetallic  thermometers

Note:
 A Jacket pipe material: 1Crl8Ni9Ti, if other  material is required, that shall be noted.
 B Other installation thread required needs  to be negotiated separately.
 C The flange standards and specifications  shall be provided in the flanged connection.
 D The nominal diameter of the thermometer  dial scale is Ф100. The insert length for Ф150 is:
 1) When the jacket diameter is Ф8, the insert length  range is 75～500mm;
 2) When the jacket diameter is Ф10, the insert length  range is 75～1000mm;
 3) When the jacket diameter isФ12,the insert length  range is 1250～2000mm.
 E The requirement on other jacket diameters  shall be negotiated separately.
