Product specification: WSSX
◆ Main technical parameters
(1)Electric contact type: Upper and lower limit contact 、 single upper limit contact 、 double upper limit contact.
(2)Accuracy class:
a.Upper and lower limit electric contact 、single upper limit electric contact:class1.5 ;
b.Double upper limit electric contact:the first upper limit is class 1.5;the second upper limit is class 4;
c.The setted error of contact is 1.5 times of the indicating value basic error.
(3)Rated power on contact 10W:
a.The maximum working voltage on the contact is 220V AC and maximum working current on the contact is 1A(non inductive
load );
b. Working voltage recommended is lower than 36V , but shouldn't be less than 12 V to guarantee that the contact moves reliablly.
(4)Dial plate nominal diameter:100mm 、60mm.
(5) Time constant, nominal pressure, jacket material are as same as WSS thermometer.
The profile and electric diagram

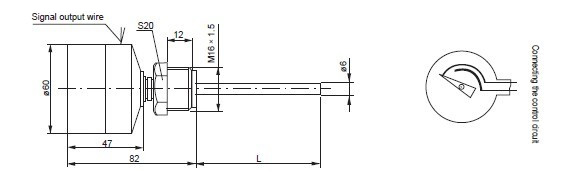

The profile and electric diagram of WSSX-301 electric contact bimetallic thermometer
Model | Measuring | Value of | Insert length | Jacket diameter | Installation | Electric | Dial plate |
WSSX-301 | -80~+40* | 2 | 75 | 6 | M16×1.5 | Single upper | 60 |
-40~+80* | |||||||
0~100 | |||||||
0~150 | |||||||
0~200 | 5 | ||||||
0~300 |
Note:The measuring range with * doesn't include insert length of 75mm.

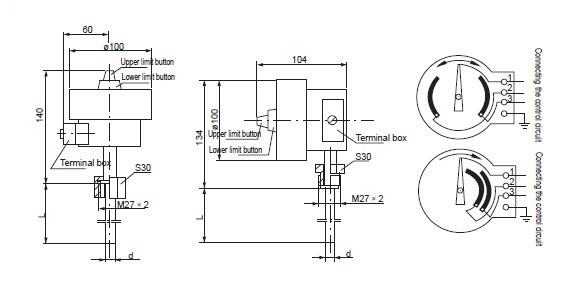

WSSX- 401 411/402 412 electric contact bimetallic thermometer
Table7 (mm) | ||||||
Model
| Measuring | Value of | Insert length | Jacket diameter | Installation | Dial plate |
WSSX-401 | -80~+40* | 2 | 75 | 10 | M27×2 | 100 |
-40~+80* | ||||||
0~100 | ||||||
0~150 | ||||||
0~200 | 5 | |||||
0~300 | 1250 | 12 | ||||
0~400 | 10 | |||||
0~500* |
Note: For the measuring range with ..,when the insert length is 75mm ,that shall be negotiated separately.
