WSS Series bimetallic thermometers

Product specification: WSS
 Summary
 Bimetallic indication thermal resistance (thermocouple) is an integration  temperature measurement instrument with on site indication and remote  transmission display function.It can be used directly to measure the  temperature of gasses、liquids and
 substances. The indication value can be read distinctly on site.And the  signals can be transmitted to the control room.The
 transmitted signals include Pt 100,K type and E type thermal resistance  signals,also the (4~20)mA standard signal after transmission. It plays a role  as an instrument with two functions.

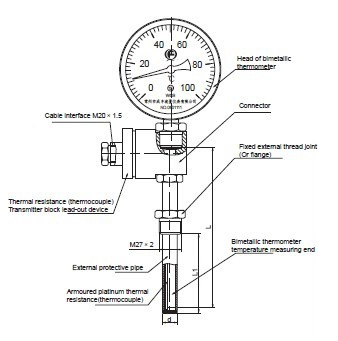

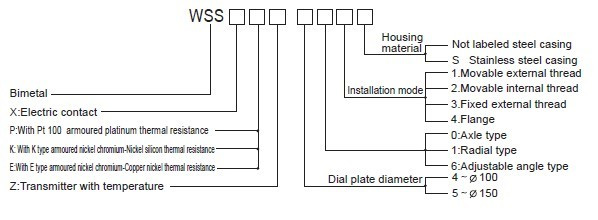

• Type naming and  representative significance

• Wiring drawing of thermal resistance (thermocouple)(as  fig.8)


1:Thermal resistance (thermocouple)
2:Temperature conversion indicator
3:Power supply 24V DC
4:Load 250± 0.01%Ω resistance
5:Adjustable instrument or computer

◆ Main technical  parameters
 ◇ Measuring range (℃):
 WSSP：-80～40、-40～80、0～50、0～100、0～150、0～200、0～300、0～400、0～500；
 WSSK：0～400、0～500；
 WSSE：0～300、0～400、0～500；
 ◇ Accuracy class:
 Bimetallic thermometer is of class 1.5;
 Armoured platinum thermal resistance is of  class B±（0.30＋0.005│t│);
 Armoured platinum thermocouple is of classⅡ  ±2.5℃ or 0.75%│t│;
 Basic error of transmitter±0.5%
 ◇ Insert length L1(mm):100；150；200；250；300；400；500；750
 ◇ Tail pipe diameter d(mm):18；20
 ◇Installation thread:M27×2； 3/4”；Flange
 ◇External protective pipe material:1Cr18Ni9Ti、316、316L、coated with  polytetrafluoroethylene
 ◇ Insulation resistance at room  temperature:Platinum thermal resistance≥100MΩ；
 Thermocouple≥1000MΩ.m
 ◇ Thermal response time of platinum thermal  resistance(thermocouple) ≤60s；
Time constant of bimetallic thermometer≤180s
