CF2002 Integrated Digital • Intelligent Transmitter

General View

 CF 2002 integrated absolute pressure / pressure transmitter
adopts diffused  silicon isolation type sensor modules that
are of high precision  and high stability, converting the
absolute pressure of  the tested medium or gauge pressure
into standard 4 ~ 20  mA DC electric signal through highly
reliable amplifying  circuit and precision temperature
compensation.  Elaborate packaging techniques and perfect
assembling technology  ensure excellent product quality and
the most optimal  performance of the product. The product
is featured with  complete types and specifications,
normalized interface  form, convenient adjustment of zero
point and range  adjustment etc, with which customer
demands can be  fulfilled to the most.
CF 2002 integrated  transmitter series can be widely used
in various tough and  dangerous industrial environment.

*Features

 Min. measuring range over 5 KPa.
Max measuring range 0  ~ 32 MPa
Direct process  connection, no braket
installation needed.
Zero point and range  continuously
adjustable externally.
Lightning proof, RF  interference proof
With local indication
Intrinsic safety  explosion proof or flame
proof
Small volume,  good-looking appearance,
high cost efficiency.
High precision, high  stability, and high

 reliability.
*Applications
Liquid level measuring  and controlling on
industrial sites
Pressure testing  system in laboratories
Ocean navigation and  ship building
Aviation and aircraft  manufacturing
Air separation plant  and heat power units
Energy source management  system
Liquid level measuring  and water supply
system
Hydraulic pneumatic  control system
*Technical indexes
Mediums to be  measured: Various liquids,
gases or steams  compatible with 316L
stainless steel

Performance indexes

Accuracy:
 ± 0.1% (including the  comprehensive error of nonlinearity, repeatability and return error).
 Zero point deviation:
 Positive deviation: 0%  ~ + 80% of max range state; negative deviation: 0% ~ -100% of max
 range state (not  exceeding -100 KPa, absolute pressure products have no negative deviation).
 Range adjustment:

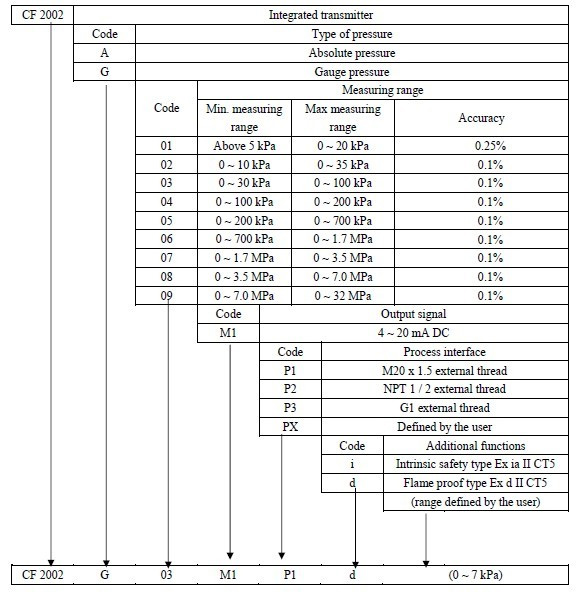

 Adjustable freely  between the min. range and max range state (see type selection table).
 Influence of over  pressure:
 Less than 0.25% of max  range state.

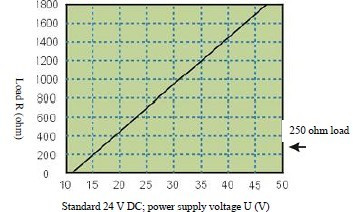

 Influence of power  supply
 Less than 0.01% V of  output range.
 Load influence:
 Negligible.
 Influence of  temperature:
 ±1.5% of max range  state (temperature range: - 20% ~ + 85%, including total temperature
 influence of zero  point and the range).
 Stability:
 ±0.25% / year of max  range state.
 Ø Features of structure:
 Material of diaphragm:  316L stainless steel
 Connection material: 1  Cr 18Ni 9Ti stainless steel
 Casing material: 1 Cr  18Ni 9Ti stainless steel
 Process interface: M20  x 1.5, NPT 1 / 2 or G1 external thread (large opening).
 Electrical interface:
 Standard water proof  plug
 Indication meter: none
 Weight: approx. 1.2  kg.
 Explosion proof mark:  Ex ia II CT5 (intrinsic safety type); Ex ia II CT5 (flame proof type)
 Overall protection  meeting requirements of IP 67 (meeting applicable parameters)
