Description
BP15 series are especially for air compressor. The cost-Performance ratio is high, utilize newest technology, assemble high performance circuit. Small profile, have strong capability of dampproof and anti-electromagnetic interference. Mainly apply in fields: air compressor, vacuum equipment, oil pressure equipment.
Features
Wide measurement range,
Multiple thread
Protection: IP65
Marking :ExiaIICT6;
CE,CMC certification
Application
air compressor, vacuum equipment,
oil pressure equipment
Specification
Measurement Range | 0~0.1．．．~60MPa |
Proof pressure | ≤1.5X rated pressure |
Pressure type | Gauge, absolute ,sealed gauge |
Accuracy | ±0.25%（typical） ±0.5%（Max.） |
Long stability | ±0.1%F.S/year（typical） ±0.2%F.S/year（Max.） |
Temperature Error- Zero | ±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa） |
Temperature Error -Span | ±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa） |
Operating Temperature Range | -20℃~80℃ |
Storage Temperature Range | -40℃~120℃ |
Power supply | 12～36VDC、5VDC |
Output signal | 4～20mA 0.5～4.5VDC,1～5V |
Pressure port | M20×1.5,G1/4 or customize |
Housing material | 1Cr18Ni9Ti stainless steel |
Diaphragm material | 316L |
O-ring | Fluororubber |
Cable | Polyethylene |
Insulation resistance | 100MΩ,100VDC |

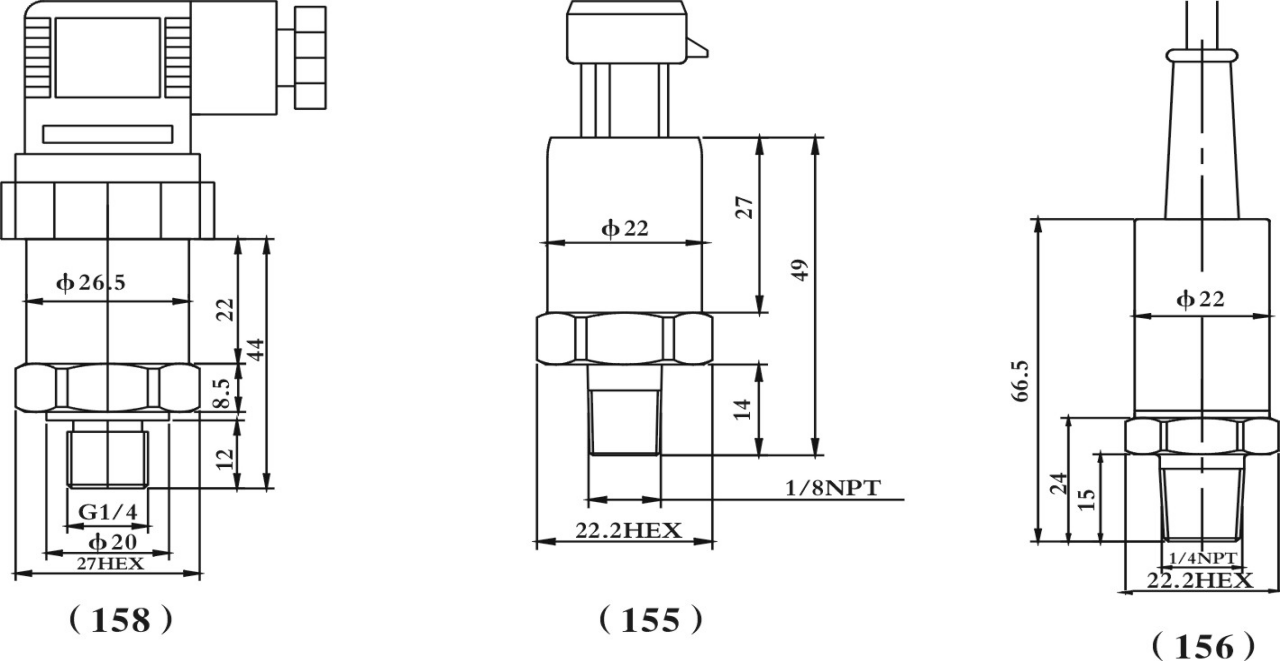

Dimension

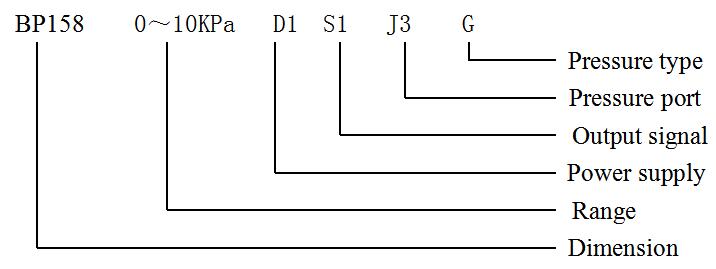

Ordering Example
Ordering Information
BP15X | Code | Dimension | ||||||||
| 5 | Packard | ||||||||
6 | Cable with 1.5 meter | |||||||||
7 | Mini DIN | |||||||||
8 | Big Din | |||||||||
| Pressure range | -0.1. . .0～0.01．．．20MPa | ||||||||
(0-X)KPa or MPa | X: measurement range | |||||||||
| Code | Power supply | ||||||||
D1 | 24VDC | |||||||||
D2 | 5VDC | |||||||||
D3 | Others | |||||||||
| Code | Output signal | ||||||||
S1 | 4～20mADC | S5 | 0～20mADC | |||||||
S2 | 1～5VDC | S6 | 0～10VDC | |||||||
S3 | 0～5VDC | S7 | 0.5～4.5VDC | |||||||
S4 | 0～10mADC |
|
| |||||||
| Code | Pressure port | ||||||||
J1 | M20×1.5 male | |||||||||
J2 | G1/2 male | |||||||||
J3 | G1/4 male | |||||||||
J4 | 7/16-20UNF female | |||||||||
J5 | Others | |||||||||
|
| Code | Pressure type | |||||||
G | Gauge | |||||||||
A | Absolute pressure | |||||||||
S | Sealed pressure | |||||||||
