BH9345 liquid level transducer

Description

BH9345 liquid level transducer is HT series of piezoresistive isolation diaphragm oil filled sensor as a signal measuring element seal in stainless steel in the shell structure, special cable and shell seal connection, cable has airway, make the sensor back pressure cavity and atmospheric interlinked, ensure that the measurement accuracy, and can long-term investment and transmitter structure compatible materials used in the liquid

Feature

Stainless steel configuration，

putting-in type liquid level meter                                               

Current supply，voltage output signal

Application

Compatible with 316LSS,noncorrosive liquids

Apply in Petroleum industry, chemical industry,generating station,water supply,hydrology etc. those need to measure &control liquid’s level.

Specification

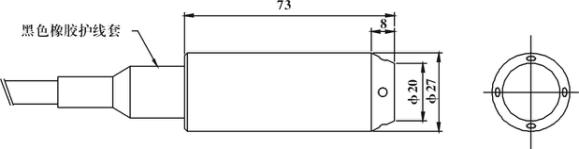

Dimension

Ordering Note:

1.Media must compatible with wetted parts.

2.There is two kinds of cable can be choose, one is common with gas tube, another is diesel oil &gasoline proof.

3.To ensure the products can working reliable,we suggest that customer install lightning protection device and make sure products & power are earthed.

4.Special requirement ,such as strong shock, moment vibration, strong electromagnetism, radio frequency interference ,please consult us.
