Description
BP9356 Micro-differential pressure, The mail measurement element is HT series silicon oil-filled sensor, which can transfer pressure to linearization voltage signal.
Feature
Measurement range: 0~6KPa~2MPa
High reliability and stability
Small profile
Stainless steel housing
Application
Measurement pressure of gas which can compatible with 316L stainless steel
Testing equipment, environmental protection, furnace pressure or vacuum furnace, industrial process of pressure and velocity measurement. Specification
Pressure range | 0~10KPa~2MPa |
Zero pressure output | ＜2 mV |
Span pressure output | DC100±20 mV |
Proof pressure of high pressure side | 2X rated pressure |
Proof pressure of low pressure side | 1X rated pressure or 1MPa, whichever is less |
Static pressure | ≤20MPa |
Accuracy | ±0.25%（typic） ±0.5%（Max.） |
Long stability | ±0.3%F.S/year (typic) ±0.5% F.S/year（Max.） |
Pressure Port | M12×1 or customize |
Compensate temperature range | 0℃~70℃ |
Operate temperature range | -10℃~80℃ |
Store temperature range | -40℃~100℃ |
Housing material | Stainless steel : 1Cr18Ni9Ti |
Diaphragm material | 316L |
O-ring material | Fluororubber |
Cable | Polyethylene |
Insulation resistance | 100MΩ,100VDC |
Protection | IP65 |

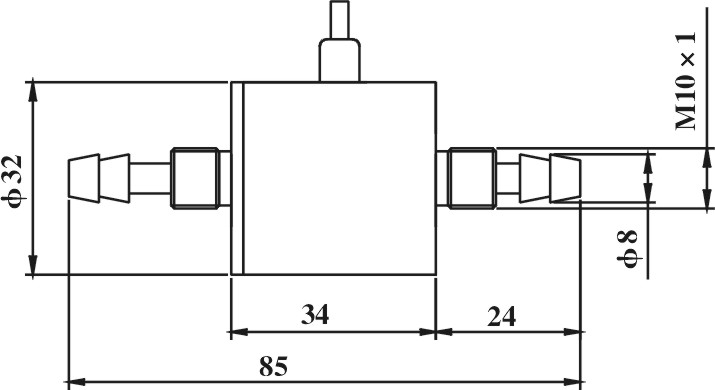

Dimension
Ordering note
1.In order to ensure that the sensor can safe and reliable operate, you can installed three valves between the sensor and the measured point to ensure that the medium slow and evenly applied to the positive, negative pressure in the cavity of the differential pressure sensor 2. Suggest that level of small range differential pressure sensor installation. 3.Pay attention to the pressure range and the static pressure value of the differential sensor can meets the corresponding requirements of the measured differential pressure point.
4. It is strictly prohibited to negative pressure higher than positive pressure in the cavity
