Description
BP9366 is HT series of piezoresistive isolation diaphragm oil filled differential sensor as a signal measuring element seal in stainless steel in the shell structure. which can transfer differential pressure to linearization voltage signal.
Feature
Measurement range : 0~6KPa~2MPa
High reliability and stability
Small profile
Application
Pressure range | 0~10KPa~2MPa |
Zero pressure output | ＜2 mV |
Span pressure output | DC100±20 mV |
Proof pressure of high pressure side | 2X rated pressure |
Proof pressure of low pressure side | 2X rated pressure or 1MPa, whichever is less |
Static pressure | ≤20MPa |
Accuracy | ±0.25%（typic） ±0.5%（Max.） |
Long stability | ±0.3%F.S/year (typic) ±0.5% F.S/year（Max.） |
Pressure Port | M12×1 or customize |
Compensate temperature range | 0℃~70℃ |
Operate temperature range | -10℃~80℃ |
Store temperature range | -40℃~100℃ |
Housing material | Stainless steel : 1Cr18Ni9Ti |
Diaphragm material | 316L |
O-ring material | Fluororubber |
Cable | Polyethylene |
Insulation resistance | 100MΩ,100VDC |
Protection | IP65 |

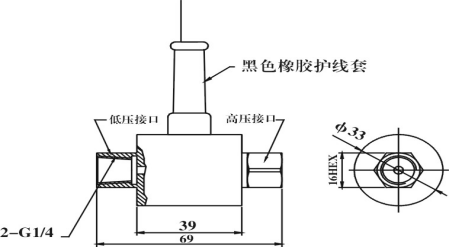

Dimension
Ordering Information1.In order to ensure that the sensor can safe and reliable operate, you can installed three valves between the sensor and the measured point to ensure that the medium slow and evenly applied to the positive, negative pressure in the cavity of the differential pressure sensor
2. Suggest that level of small range differential pressure sensor installation. 3.Pay attention to the pressure range and the static pressure value of the differential sensor can meets the corresponding requirements of the measured differential pressure point.
4. It is strictly prohibited to negative pressure higher than positive pressure in the cavity
