Description
BP93420IN pressure transmitter uses HT series piezoresistive silicon oil-filled isolation film sensor as the signal measuring element. Signal processing circuit located in the stainless steel housing, can convert sensor signal into standard output signal. All the products through components and semi-finished products testing, finished products burn-in select, are with stable and reliable performance.
Features
Wide measurement range, Full stainless steel.
Protection:IP65
Marking : ExiaIICT6
Various output signal，Scene adjustable.
CE Certification
Application:
Compatible with 316LSS,noncorrosive gases & liquids
Applied to the refrigeration system, pneumatic systems and other automatic detection system
Specification
Measurement Range | 0~35KPa．．．~100MPa |
Proof pressure | ≤1.5X rated pressure or 110MPa, which is less |
Pressure type | Gauge, absolute , or sealed pressure |
Accuracy | ±0.25%（typical） ±0.5%（Max.） |
Long-term stability | ±0.1%F.S/year（typical） ±0.2%F.S/year（Max.） |
Temperature Error- Zero | ±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa） |
Temperature Error -Span | ±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa） |
Operating Temperature Range | -20℃~80℃ |
Storage Temperature Range | -40℃~120℃ |
Power supply | 15～28VDC(intrinsic safe type supplied by safety barrier) |
Output signal | 4～20mA; 0～10/20mA; 0/1～5/10VDC |
Pressure port | M11×1.25 female thread, or customized |
Housing material | 1Cr18Ni9Ti stainless steel |
Diaphragm material | 316L |
O-ring | Fluororubber |
Cable | polyethylene |
Insulation resistance | 100MΩ,100VDC |
Housing protection class | IP65 |

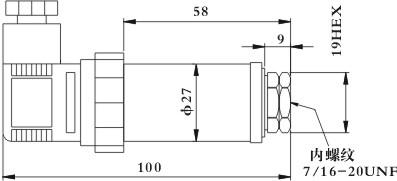

Dimension

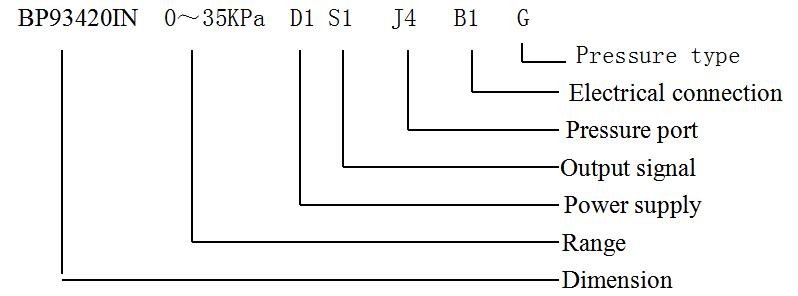

Ordering example
Ordering note:
1.Media must compatible with wetted part.
2.Explosion proof type products are without display meter.
3.To ensure the products can working reliable, we suggest that customer install lightning protection device and make sure products & power are earthed.
4.Special requirement, such as strong shock, moment vibration, strong electromagnetism, radio frequency interference ,please consult us.
Warranty:
Pressure transmitters have a limited one-year warranty to the original purchaser. Hengtong will replace or repair defective products free of charge. This warranty does not apply to any units have been modified, misused, neglected .
