Description

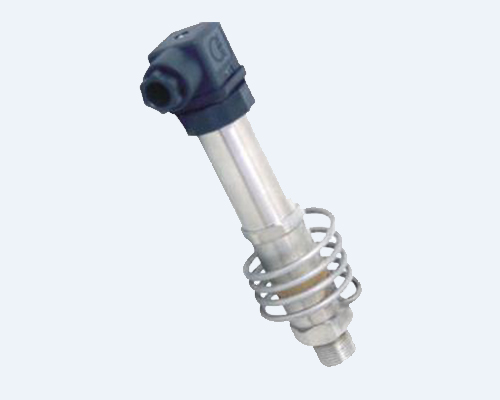

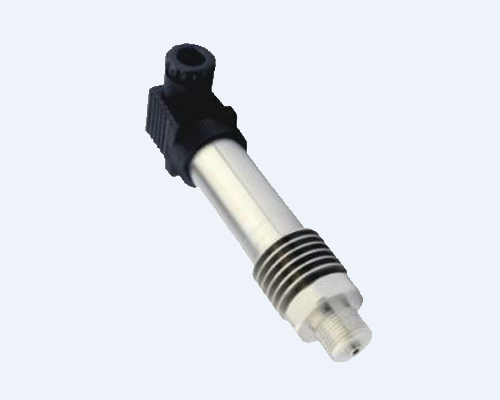

BP93420IC high temperature pressure transmitter, use HT series piezoresistive silicon oil-filled sensor as measurement component. Sensor’s output transferred to standard output signal via integrated amplify circuit. Have high reliability &stability.
Feature
Wide range
Protection :IP65;
Scene adjustable
Various output signal
CE certification
Marking :ExiaIICT6; Application
Compatible with 316LSS,noncorrosive gases & liquids
Petroleum industry, chemical industry, metallurgy industry, electric power, hydrology etc. Specification
Measurement Range | -0.1．．．0~0.01．．．~100MPa |
Proof pressure | ≤1.5X rated pressure or 110MPa which ever is less |
Pressure type | Gauge, absolute ,sealed gauge |
Accuracy | ±0.25%（typical） ±0.5%（Max.） |
Long term stability | ±0.1%F.S/year（typical） ±0.2%F.S/year（Max.） |
Temperature Error- Zero | ±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa） |
Temperature Error -Span | ±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa） |
Media Temperature Range | -20℃~150℃ |
Surrounding Temperature Range | -40℃~80℃ |
Power supply | 15～30VDC |
Output signal | 4～20mA 0～10/20mA 0/1～5/10VDC |
Pressure port | M20×1.5,G1/2 or customize |
Housing material | 1Cr18Ni9Ti stainless steel |
Diaphragm material | 316L |
O-ring | Fluororubber |
Cable | polyethylene |
Insulation resistance | 100MΩ,100VDC |
Protection | IP65 |

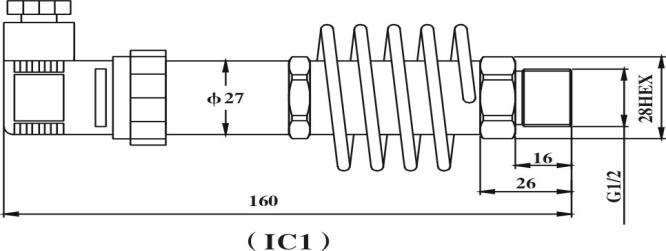

Dimension（Unit：mm）

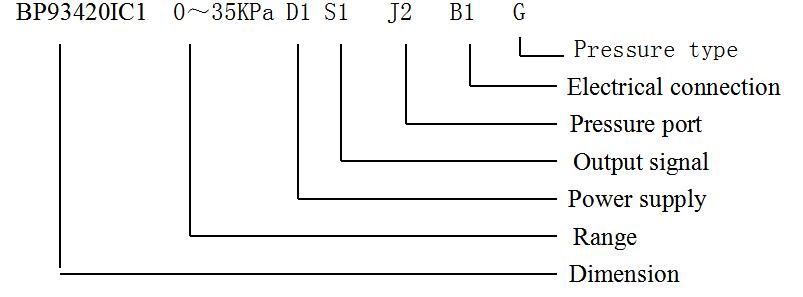

Ordering example
