Description
BP93420IQ pressure transmitter uses HT series piezoresistive silicon oil-filled sensor as the signal measuring element. Signal processing circuit located in the stainless steel housing, can convert sensor signal into standard output signal. All the products through components and semi-finished products test, finished products burn-in screening, are with stable and reliable performance. This model can effectively avoid the easy crystallization medium to block up pressure port..
Feature
Wide range, Protection :IP65;
Scene adjustable
Various output signal
CE certification
Marking :ExiaIICT6 '
Application
Pressure measurement of liquid or gas compatible with 316LSS
Applied to medical, ;biological products, food hygiene industry and so on
Pressure measurement in papermaking industry, sewage level and beverage.
Specification
Measurement Range | 0~35KPa．．．~100MPa |
Proof pressure | ≤1.5X rated pressure |
Pressure type | Gauge, absolute , or sealed pressure |
Accuracy | ±0.25%（typical） ±0.5%（Max.） |
Long-term stability | ±0.1%F.S/year（typical） ±0.2%F.S/year（Max.） |
Temperature Error- Zero | ±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa） |
Temperature Error -Span | ±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa） |
Operating Temperature Range | -20℃~80℃ |
Storage Temperature Range | -40℃~120℃ |
Power supply | 15～28VDC(intrinsic safe type supplied by safety barrier) |
Output signal | 4～20mA; 0～10/20mA; 0/1～5/10VDC |
Pressure port | Clamp type flange interface |
Housing material | 1Cr18Ni9Ti stainless steel |
Diaphragm material | 316L |
O-ring | Fluororubber |
Cable | polyethylene |
Insulation resistance | 100MΩ,100VDC |
Housing protection class | IP65 |

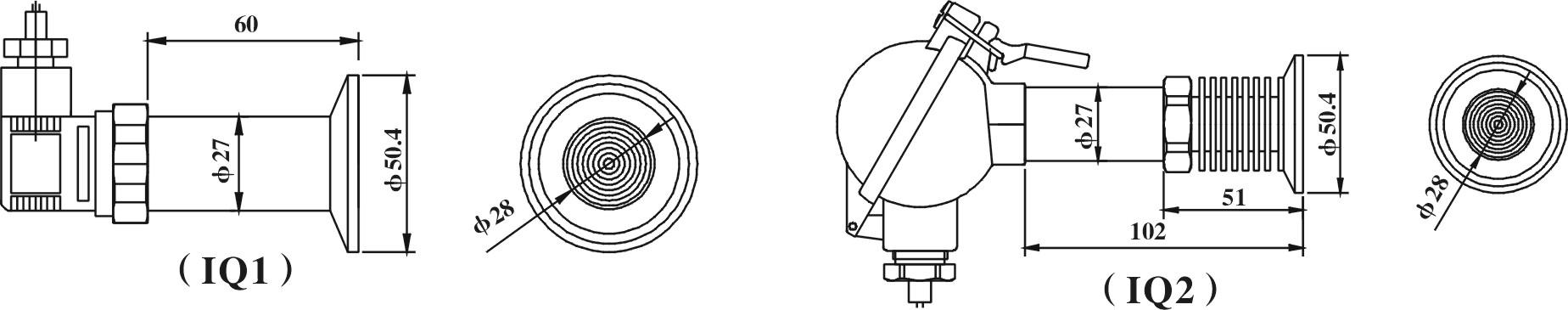

Dimension: （Unit：mm）

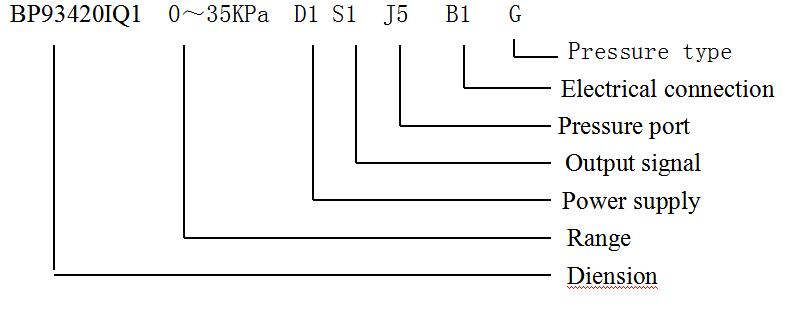

Ordering example
